Mechanical Dock Levelers

EOD Cut Sheet PDF
Dock Leveler Installation and User Manual

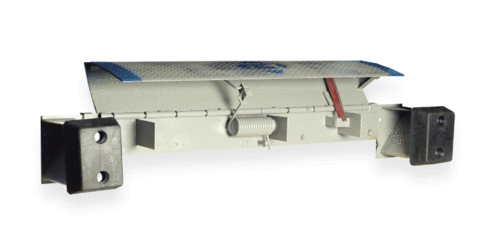

Fast and easy to operate, this edge of dock leveler is positioned by lifting a self-storing handle and pulling the handle to the dock floor.  The latch assembly activates the lip forward to the floor of the trailer as the handle is lifted.  When released, the handle automatically returns to a stored position.  The optimum dock height for conventional trailers is 51", while the proper dock height for refrigerated equipment is 55".  A Refrigerated lip is optional.  Widths are 66", 72" and 78".

Note: EP edge of dock levelers require a welded installation
Capacities from 20,000 pounds to 30,000 pounds.


Have Questions?
Call one of our EOD Dock Experts at 1800-741-1258


  • Home
  • Edge of Dock Levelers
Reg. Price:
$1,049.00
Sale Price:
$951.00
Save:
$98.00

20,000 lb capacity
15" Lip Length
66" Usable Width
89" Overall Width
Quick Ship

Edge of Dock Leveler
Reg. Price:
$1,145.00
Sale Price:
$1,038.00
Save:
$107.00

20,000 lb capacity
15" Lip Length
72" Usable Width
95" Overall Width
Quick Ship

Edge of Dock Leveler
Reg. Price:
$1,385.00
Sale Price:
$1,256.00
Save:
$129.00

20,000 lb capacity
15" Lip Length
78" Usable Width
101" Overall Width
Quick Ship

Reg. Price:
$1,255.00
Sale Price:
$1,138.00
Save:
$117.00

20,000 lb capacity
17" Reefer Lip
66" Usable Width
89" Overall Width

Reg. Price:
$1,360.00
Sale Price:
$1,233.00
Save:
$127.00

20,000 lb capacity
17" Reefer Lip
72" Usable Width
95" Overall Width

Reg. Price:
$1,503.00
Sale Price:
$1,363.00
Save:
$140.00

20,000 lb capacity
17" Lip Length
78" Usable Width
101" Overall Width


Edge of Dock Leveler
Reg. Price:
$1,206.00
Sale Price:
$1,094.00
Save:
$112.00

25,000 lb capacity
15" Lip Length
66" Usable Width
89" Overall Width
Quick Ship

Edge of Dock Leveler
Reg. Price:
$1,289.00
Sale Price:
$1,169.00
Save:
$120.00

25,000 lb capacity
15" Lip Length
72" Usable Width
95" Overall Width
Quick Ship

Edge of Dock Levelers
Reg. Price:
$1,451.00
Sale Price:
$1,316.00
Save:
$135.00

25,000 lb capacity
15" Lip Length
78" Usable Width
101" Overall Width

Reg. Price:
$1,344.00
Sale Price:
$1,219.00
Save:
$125.00

25,000 lb capacity
17" Reefer Lip
66" Usable Width
89" Overall Width

Reg. Price:
$1,555.00
Sale Price:
$1,233.00
Save:
$322.00

25,000 lb capacity
17" Reefer Lip
72" Usable Width
95" Overall Width

Reg. Price:
$1,676.00
Sale Price:
$1,363.00
Save:
$313.00

25,000 lb capacity
17" Reefer Lip
78" Usable Width
101" Overall Width

Reg. Price:
$1,394.00
Sale Price:
$1,264.00
Save:
$130.00

30,000 lb capacity
15" Lip Length
66" Usable Width
89" Overall Width

Edge of Dock Leveler
Reg. Price:
$1,467.00
Sale Price:
$1,330.00
Save:
$137.00

30,000 lb capacity
15" Lip Length
72" Usable Width
95" Overall Width

Edge of Dock Leveler
Reg. Price:
$1,544.00
Sale Price:
$1,400.00
Save:
$144.00

30,000 lb capacity
15" Lip Length
78" Usable Width
101" Overall Width

Reg. Price:
$1,561.00
Sale Price:
$1,416.00
Save:
$145.00

30,000 lb capacity
17" Reefer Lip
66" Usable Width
89" Overall Width

Reg. Price:
$1,776.00
Sale Price:
$1,611.00
Save:
$165.00

30,000 lb capacity
17" Reefer Lip
72" Usable Width
95" Overall Width

Reg. Price:
$1,899.00
Sale Price:
$1,722.00
Save:
$177.00

30,000 lb capacity
17" Reefer Lip
78" Usable Width
101" Overall Width

Reg. Price:
$1,617.00
Sale Price:
$1,617.00
Save:
$0.00
Retrofit kit for exisitng edge of dock levelers.
*welding is required
molded 2 hole DB-13 Bumper
Reg. Price:
$42.00
Sale Price:
$31.18
Save:
$10.82

DB-13 Molded Dock Bumper
4" Thick x 10"High x 13" Long
7" Hole Offset
IN STOCK - SHIPS SAME DAY



Edge Of Dock Leveler Accessories


EZ-PULL EDGE OF DOCK LEVELERS

Table 1
These boards are for freight line trailers.
Click the MODEL NUMBER to view the product.

 Model Capacity Lip Length Usable Width  Overall Width  Span Weight
20EP66 20,000  15" 66" 88" 27 3/4" 505
20EP72 20,000 15" 72" 94" 27 3/4" 545
20EP78 20,000 15" 78" 100" 27 3/4" 585
25EP66 25,000 15" 66" 88" 27 3/4" 562
25EP72 25,000 15" 72" 94" 27 3/4" 606

Table 2
These boards are for refrigerated trailers.

Model Capacity Lip Length Usable Width Overall Width Span Weight
20EP66-R 20,000  17" 66" 88" 29 3/4" 520
20EP72-R 20,000 17" 72" 94" 29 3/4" 560
20EP78-R 20,000 17" 78" 100" 29 3/4" 610
25EP66-R 25,000 17" 66" 88" 29 3/4" 580
25EP72-R 25,000 17" 72" 94" 29 3/4" 626
25EP78-R 25,000 17" 78" 100" 29 3/4" 680

Installation materials for permanently mounted edge of dock levelers.
Note: EP edge of dock leveler requires welded instalation

Model Options Weight
EPAP12C Long beveled approach plate 120" wide with 5 each 13/16" counter sunk holes for mounting to top of dock. 164
EPAP24C 24" Long beveled approach plate 120" wide with 5 each 13/16" counter sunk holes for mounting to top of dock. 327
EPAP1 Fastener kit for EPAP12C & EPAP24C.  Consists of 5 each 1/2" double expansion shields and 5 each 1/2" - 13x3" flat head socket screws. 3
EPAP2 Fastener kit for installation of the leveler.  Consists of 9 each 3/4" x 4" wedge anchor bolts including the nuts & washers. 6
EPAP3 Fastener kit for installation of the leveler and approach plate or a lo dock leveler.  Consists of 9 each 3/4" x 4" wedge anchor bolts including the nuts & washers.  Also consists of 5 each 1/2" x 13" x 3" flat head socket screws and 5 each 1/2" double expansion shields. 6
