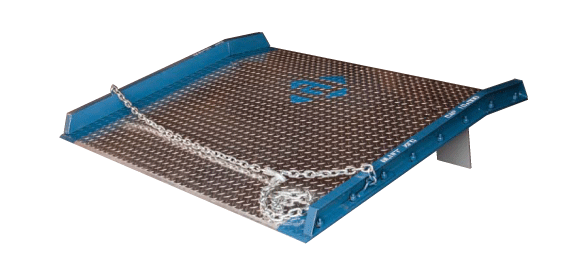

Aluminum Dock Board
Give Our Dock Experts a Call Aluminum Dock Board Pricing10,000 lbs Capacity |
Pallet Trucks Electric Equipment Max Height |
Gas Forklifts Max Height |
Board Width |
Board Length |
Weight (lbs.) |
Model Number |
---|---|---|---|---|---|
3" | 5" | 54" | 36" | 111 | AC5436 |
3" | 5" | 60" | 36" | 127 | AC6036 |
3" | 5" | 72" | 36" | 136 | AC7236 |
5" | 7" | 54" | 48" | 146 | AC5448 |
5" | 7" | 60" | 48" | 163 | AC6048 |
5" | 7" | 72" | 48" | 179 | AC7248 |
6" | 8" | 60" | 54" | 179 | AC6054 |
7" | 9" | 54" | 60" | 184 | AC5460 |
7" | 9" | 60" | 60" | 202 | AC6060 |
7" | 9" | 72" | 60" | 225 | AC7260 |
8.5" | 11" | 60" | 72" | 253 | AC6072 |
10" | 13" | 60" | 84" | 297 | AC6084 |
12" | 15" | 60" | 90" | 317 | AC6090 |
12" | 15" | 60" | 96" | 337 | AC6096 |
15,000 lbs Capacity
Aluminum Dock Board Model BC
Pallet Trucks Electric Equipment Max Height |
Gas Forklifts Max Height |
Board Width |
Board Length |
Weight (lbs.) |
Model Number |
---|---|---|---|---|---|
3" | 5" | 60" | 36" | 145 | BC6036 |
3" | 5" | 72" | 36" | 167 | BC7236 |
4" | 6" | 60" | 42" | 170 | BC6042 |
5" | 7" | 54" | 48" | 177 | BC5448 |
5" | 7" | 60" | 48" | 201 | BC6048 |
5" | 7" | 72" | 48" | 220 | BC7248 |
7" | 9" | 60" | 60" | 247 | BC6060 |
7" | 9" | 72" | 60" | 277 | BC7260 |
8.5" | 11" | 60" | 72" | 304 | BC6072 |
Don't see the size you need?
Give us a call at 1800-741-1258
Aluminum Dock Board Dimensions
![]() |
![]() |
![]() AC Model Capacity: 10,000 lbs. |
Optional Features
Stocking Locations
Shipping Dock Boards To You Cheaper and Faster With access to a centrally located manufacturing facility and 7 quick ship locations, Loading Dock Supply offers offers extremely competitive shipping rates. Stocking Locations
Lead Times When not available at a quick ship hub all Aluminum Dock Plates ship next day. |
![]() |
|
Need Help Selecting A Ramp Model?
![]() |
![]() |
Dock Board Length Chart To ensure your dockboard will provide a sufficient grade for your equipment, Measure the greatest difference between dock and truck height to find the differential. There are two variables considered in the chart (left); Boards for all traffic or just gas forklifts. It is important to know what types of equipment will be used on the board to ensure the length will accommodate a 19% grade for gas forklifts or a 14% grade for everything else. Always be sure to round partial increments up to the next inch.
|
|
![]() |
Dock Board Capacity Chart Insufficient capacity is a serious problem that severely reduces the life of your dock board, putting your equipment and personnel at risk. When determining the capacity you need consider the equipment types used and overall period of daily use.
|
