12,000 lb capacity
15' Steel Yard Ramp
Overall Width 70"

HomeYard RampsBrochure (PDF)

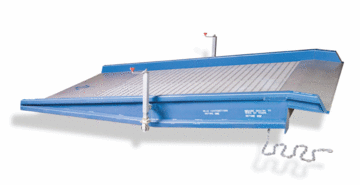

Steel Yard Ramp Model: 12MR7015

Capacity: 12,000 lbs
Length: 15'
Width: 70" (64" usable width)
Weight: 1,890
Greatest Service Height: 33"
Lowest Service Height: 16"
% of Grade @ 50" Height: 14%
Curb Heights: 8"
Carrier/Dock End Treadplate: Reinforced Diamond Deck Steel with 15" Lip
Approach Apron: Reinforced Diamond Deck Steel
Incline Deck: Reinforced Self Cleaning Serrated Grating

The model 12MR7015 yardramp is used for loading or unloading freight from trailer to dock or truck to ground. It's shot length limits the greatest differential while also allowing the ramp to service heights lower than what a traditional 30' yard ramp can accommodate. Aside from the length the mini ramp still offers all the benefits of a yard ramp with its reinforced aprons and open serrated steel grating designed for excellent traction while preventing build-up of snow, water, and other debris.

Mobile Screwjack Option:
The operator utilizes dual screw jack attachments to move the ramp away from the service area when not in use. Simply crank the arms and cantilever the ramp then pull it to where it needs to be with one of two handles at the forward end of the ramp.

Need a custom fit for your Yard Ramp?
Our custom ramps are available in 10 working days!
Call us 1800-741-1258
