Loading Dock Stop & Go Traffic Light Alerts Truck Drivers and Loading Dock Personnel to the Safety Status of Docked or Docking Trucks.
The stop and go light for buildings.
As a truck is being directed to an individual loading dock, the Stop And Go Traffic Light flashes green. The truck is cleared to back into the loading dock. When the trailer reaches the loading dock and is safely locked into place, a signal is sent to the Stop And Go light. The flashing green light outside changes to a flashing red light, telling the driver that he is safely docked. As an additional safety feature, a second Stop And Go Light can be installed inside the loading area. When the outside light flashes red letting drivers know they are safely docked, the inside light flashes green to indicate that loading or unloading may begin. There are many different applications for Stop and Go Traffic Lights. Forklift and Freight traffic are just one area in which traffic lights are used.
Incandescent Stop And Go Traffic Lights Feature:
Standard automotive bulbs are inexpensive and easy to replace
The SG10 Incandescent Style Stop And Go Light is the simplest unit, and contains no internal logic or flashing circuitry. The lamps simply light when power is applied. The user is responsible for providing a power source with flashing circuits. Choose between 12v, 24v, 115v.
The SG20 Incandescent Style Stop And Go Light, is equipped with an internal flasher and selector switch. The switch will cause either the RED or GREEN lamp to signal alternately. The user is only responsible for providing a power source. Choose between 12v, 24v, 115v.
The SG30 Incandescent Style Stop And Go Lights consists of an SG20 (control unit) and an SG10 (drone unit) linked via a communication cable with internal flashing circuitry. Flipping the switch on the control unit will cause either the red or green lamp to flash on the control unit and the opposite to flash on the drone unit. The user is responsible for providing a power supply to the control unit and attaching the communication cable to the drone unit. Choose between 12v, 24v, and 115v.
The SG10-LED Style, Stop And Go Light is the simplest unit, and contains no internal logic or flashing circuitry. The lamps simply light when power is applied. The user is responsible for providing a power source with flashing circuits. Available in 12v, 24v, 115v styles.
The SG20 LED Style Stop And Go Light, is equipped with an internal flasher and selector switch. The switch will cause either the RED or GREEN lamp to signal alternately. The user is only responsible for providing a power source. Choose between 12v, 24v, 115v.

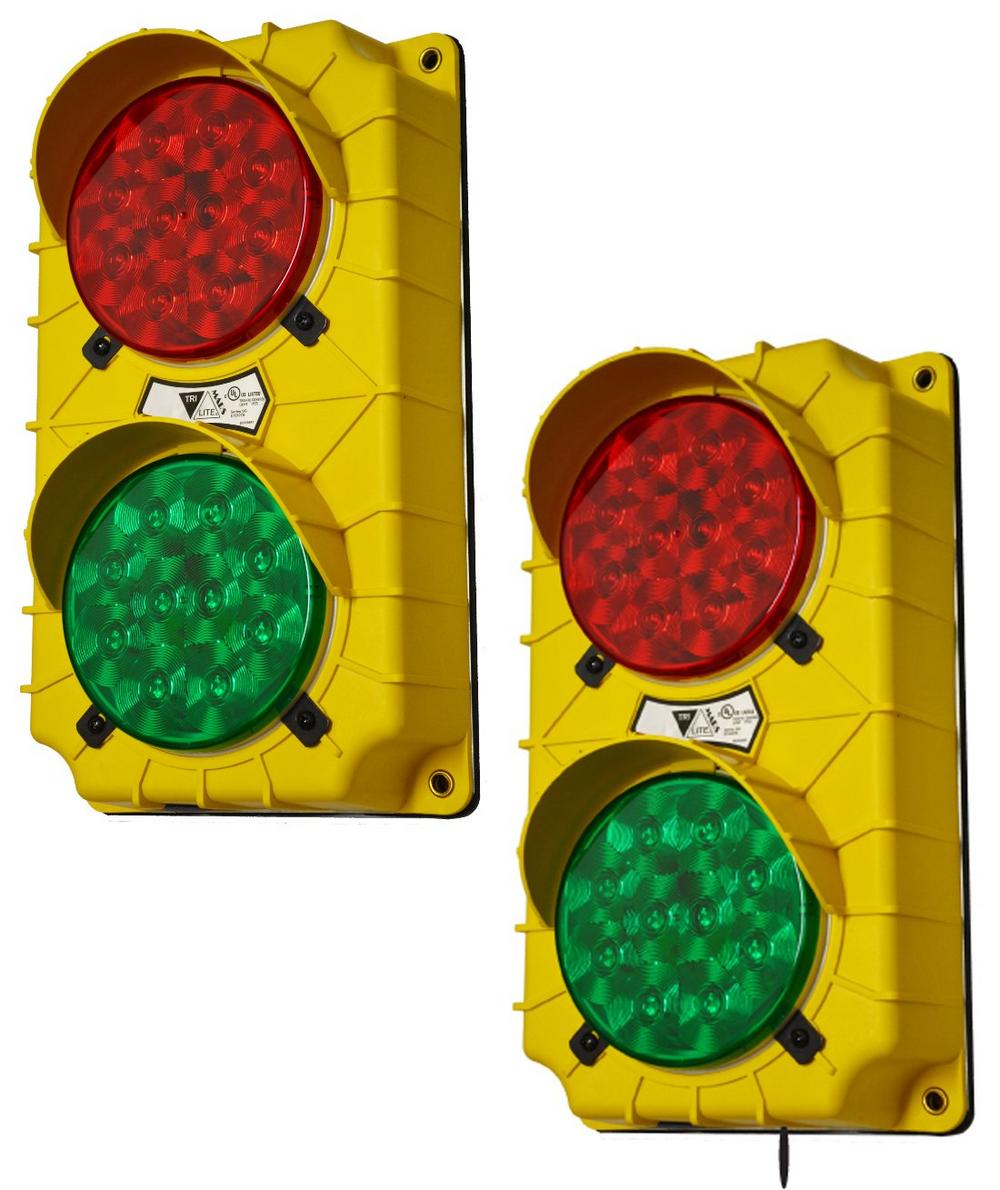

The SG30 LED Style Stop And Go Lights consist of an SG20 (control unit) and an SG10 (drone unit) linked via a communication cable with internal flashing circuitry. Flipping the switch on the control unit will cause either the red or green lamp to flash on the control unit and the opposite to flash on the drone unit. The user is responsible for providing a power supply to the control unit and attaching the communication cable to the drone unit. Choose between 12v, 24v, and 115v.
Stop And Go Traffic Light Technical Specifications Housing...............Safety Yellow Polypropylene Power Source....12 Or 24 volt DC operation or 115 volt AC operation Lens diameter....4 1/4" Dimensions........11 3/8" H x 6 3/8" W x 3 3/4" D
