DL2GN - Gooseneck Dock Light
Reg. Price:
Sale Price:
back add to cart
add to cart

HomeDock LightsLED Dock Lights

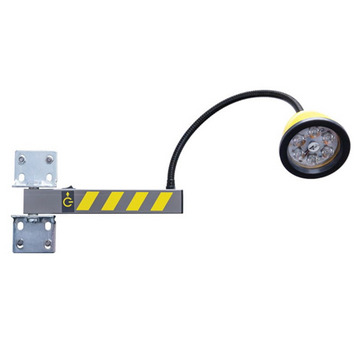

DL2GN Gooseneck Dock Light

Meet the DL2GN Gooseneck Dock Light, Tri Lite's groundbreaking successor to the DLGN series. This innovative model combines the best of both worlds – the adjustable neck of a gooseneck dock light and the fixed swing arm of traditional models.

Key Features:

  • Hybrid design for optimal functionality, merging the flexibility of an adjustable gooseneck with the stability of a fixed swing arm.
  • Swing arm allows the light to be easily directed towards the opening, while the adjusted gooseneck stays in the ideal position.
  • Significantly reduces the need for frequent gooseneck readjustments, minimizing wear and tear on the adjustable neck.
  • Enhances the fixture's lifetime use and prevents sag over time, ensuring prolonged durability.
  • 'Set and forget' positioning for optimal operation without obstructing forklifts or doors.
  • Base hinge minimizes friction, ensuring smooth movement and repositioning.
  • Stage one adjustable bar reduces size, length, and weight, preventing sag over time.
  • US-made high-impact polycarbonate head with optimized internal LED, reducing weight compared to PAR38 lamps and metal heads.

Illuminate a 53′ trailer with ease using the DL2GN, leveraging the same cutting-edge light engine as the entire DL2 Series. Elevate your lighting with our DL2IL for unmatched versatility and performance.


  • Up to 94% energy savings compared to traditional incandescent heads.
  • 100,000-hour life expectancy.
  • Convenient flat storage against the wall.
  • Safety bumper for operator protection and product damage mitigation.
  • Universal LED engine across all DL2 products.
  • Fixed wattage eliminates the risk of incandescent lamps in LED fixtures.
  • 5-year warranty.
  • UL and cUL Listed.
  • Proudly made in the USA.

Choose brilliance. Choose DL2GN – where innovation meets illumination.

Technical Specifications
Wattage 13.4W
Power Source 120V, 60HZ
Lumens 1331
Beam Angle 10°
CRI ≥ 75
CCT 5000K
Life 100,000 Hours at 70% Lumen Maintenance
Weight 7.46 lbs
Material Steel, Polycarbonate, Aluminum
Cord Length 6 in
Cord Type NEMA 5-15
Mounting Hole Size 3/8 in (11mm)
Mounting 3/8 in. lag bolts (not included) recommended for installation on concrete.
Compliances cULus listed, RoHS Compliant, Rated for damp locations, LM79 report available upon request.
Warranty 5 years
