D2 Drilled Specialty Dock Bumpers
Reg. Price:
$15.00
Sale Price:
$9.88
Save:
$5.12
back add to cart
Drilled Length:*
Quantity:
add to cart

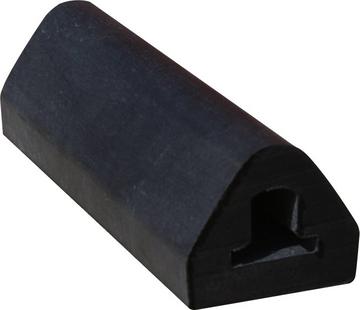

Model D2 - Extruded "D" Shaped Wall Guard
1 3/4" x 2" x 10' Max
Drilled 3" from each end then 18" on center
(Sold in 12" increments)

Details:

HomeDock BumpersExtruded Dock BumpersDrawing (PDF)Drill Pattern (PDF)Brochure (PDF)

Extruded Dock Bumper Model: D2 Drilled

D2 Specification
Projection 1.75"
Height 2"
Rubber Width Up to 10'
Drill Pattern 18" centers
3" in from each end
Weight 2 lbs. per ft.
Material EPDM

All measurements +/- 1/8"
Custom drill patterns and tooling available upon request.

Our American manufactured D2 bumpers are available in continuous lengths of any size up to 10'. Standard drill pattern for all drilled extruded D bumpers shall be 18" hole centers or 3" in from each end.

Applications

  • Extruded Dock Bumpers are appropriate for outdoor or indoor protection.
  • For commercial loading docks, warehouses, parking garages, and marinas.
  • For vehicles such as tow trucks, trailers, and heavy duty construction equipment.
  • In-plant wall protection from forklifts, and other material handling vehicles.

Material/Thickness

  • Made of solid EPDM rubber for medium and heavy-duty protection
  • All extruded bumpers have impact resistance (ASTM 2632) of 75% with a durometer reading of 70 plus or minus 5.

Installation:

  • Glue or drill for mounting to a variety of surfaces
