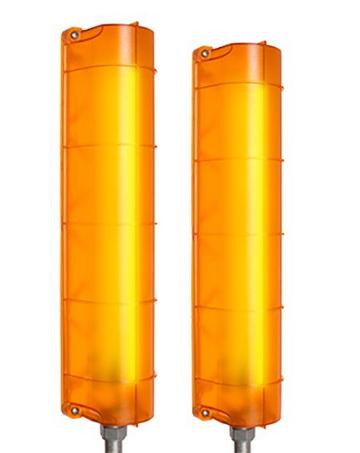

DGLED-12/A LED Dock Guide Light Set 12v Pair
Reg. Price:
Sale Price:
back add to cart
add to cart

LED Dock Guide Light
12v AC/DC LED Module
100 LED Per Pair


LED Loading Dock Guide Light model DGLED-12 helps to safely and accurately align a truck trailer with the dock door. One hundred bright LEDs per set make these guide lights easily visible, even in daylight! The LEDs are covered by a weatherproof polycarbonate amber housing, a color best suited for contrast and depth perception in mist, fog, and other inclement weather. Rugged and durable for long life, guide lights from Loading Dock Supply, are resistant to shock and vibration.

  • Long-life LEDs reduce replacement costs and down time.
  • Maintenance free – 5 year limited warranty
  • Energy efficient
  • Outdoor Rated
  • Made in the USA
  • Easy installation on any vertical surface.
  • No separate power supply required for AC units.
  • DGLED-12 units connect directly to AC/DC power supply. (12-24V)
  • Easily activated by any on/off switch, control relay, or permanent power supply.


Technical Specifications
Housing Weatherproof Amber Polycarbonate
Electrical Rating @12 VAC/VDC, 950mA., 12W
@24 VAC/VDC, 950mA., 24W
Rating UL & cUL
Dimensions 15" High x 3 5/8" Wide x 2 3/4" Projection

Part Number Description
DGLED-12/A 12 VAC/DC Guide Light Set
533300 Circuit Board
203020 Housing Cover
203021 Back Plate
