Hog Door Seal
Reg. Price:
$0.00
Sale Price:
$0.00
Save:
$0.00
Desired Vertical Pad Height
Vertical Pad Depth (8in is standard)
Vertical Pad Width (8in is standard)
Header Pad Width
Quantity

Hog Door Seal
Custom made

Details:

Hog Door Seals - Product Details

Our hog door seals are durable foam pads engineered for swine loading docks and chutes. They block sunlight to encourage pigs into trailers and seal gaps to prevent injuries or escapes—perfect for hog barns with and without bumpers. Custom-built for your farm

Feature Details
Materials High-density foam core encased in vinyl (40 oz standard base; optional 50 oz wear pleats for added durability). Opaque, weather-resistant, and biosecure—resists moisture, mud, tears, and easy to clean.
Depth & Sizing 8-inch standard projection. Customizable widths/heights.

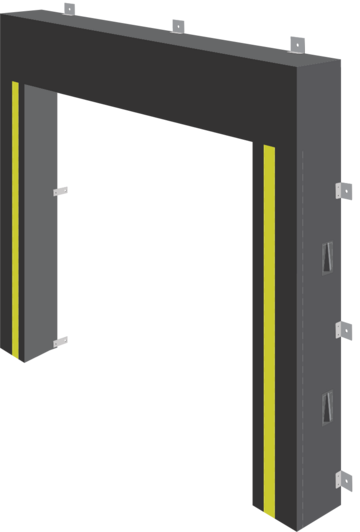

Configurations Vertical Pair: Two side pads only.
3-Pad System: Two verticals + top header for full coverage and tunnel effect.
Mounting & Compatibility Bolt-on brackets for easy frame attachment
Compression Foam compresses up to 50% on trailer contact, rebounds for reuse; adapts to irregular shapes.

How It Works

Mount the pads to your hog door frame trailer or chute. When in use, the pads compress to create a light-blocking, gap-sealing barrier. This darkens the area, leveraging pigs' light preferences to reduce balking from shadows or contrasts.

Key Benefits

  • Prevents gaps for safer pig movement—no injuries or escapes.
  • Blocks sunlight to speed up low-stress loading.
  • Heavy-duty construction minimizes maintenance and replacements.
  • Fully customizable to match your swine operation's needs.

Ask About
Quantity Discounts

Monday-Friday

9 am - 6 pm EST

Call the Experts!
+1 (800)741-1258
