|25EP66-H - Specifications
|Height up Gas Forklifts only(19% max grade)
|Height up All Equipment (14% max grade)
|Unit Overall Width
|Overall Ramp exstension from dock
|Bumper Projection from Dock
|Steel Deck Thickness

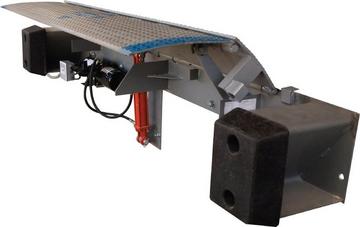

With an Edge Of Dock Leveler 25EP66 Hydraulic you’ll gain the benefits of a pit leveler without the extensive labor and upfront costs associated with installation and upkeep. Simply mounted directly to the face of your dock, an edge of dock leveler (EOD) provides dependable access to trailers ±5” above and below the loading dock. The hydraulic model actuates via a control panel inside the dock. Simply press the reverse button till the ramp is fully raised then press the forward button until the lip rests on the trailer bed. When your finished, depress the reverse button until the front lip clears the truck bed and raises into a vertical position. The hydraulic fluid will return to the tank, and The deck section will slowly lower to its resting position parallel to the dock face.
- Capacities from 20,000 to 30,000 lbs.
- Alternate widths of 72" and 78"
- Hydraulic Movement
- Refrigerated lip optional
- Bumpers and bumper blocks included.
- Operates ±5" above and below dock level
- 16.75” Bumper face projection
- Simple to Install
- Fast, Simple Operation.
Bluff's edge of dock leveler is designed to have a working range of 5" above and 5" below dock level when used with gas forklifts or 3" above and below dock level for all other equipment types.
For loading docks to low for this working range we offer low dock ramps designed to be mounted to the floor of your dock opening. This allows the leveler to be mounted at a height suitable to your needs.
Installation of an edge of dock leveler requires an approach plate or embedded C channel.
Optional Installation Materials:
EPAP3:Fastener kit for installation of the leveler only - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers
EPAP2: Fastener kit for installation of the leveler and approach plate - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers; contains 5 (ea) 1/2" x 3" flat-head socket screws and 5 (ea) 1/2" double expansion shields
EPAP12C - 12" beveled approach plate; 120" wide (custom widths available), complete with 5 13/16" countersunk holes for mounting to top of dock
EPAP24C - 24" beveled approach plate; 120" wide (custom widths available), complete with& 5 13/16" countersunk holes for mounting to top of dock
Give us a call to discuss your needs
