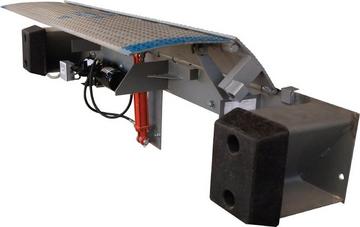

Hydraulic Edge of Dock Leveler 20EP78-H
Reg. Price:
$5,128.00
Sale Price:
$4,591.00
Save:
$537.00
back add to cart
Installation Kit
*
Quantity
add to cart

20,000 lb capacity
15" Lip Length
78" Usable Width
101" Overall Width
Hydraulic Movement

Details:

HomeDock BoardsDock LevelersHydraulic Dock levelers

20EP78-H - Specifications
Height up Gas Forklifts only(19% max grade) 5"
Height up All Equipment (14% max grade) 3"
Capacity 20,000 lbs.
Usable Width 78"
Unit Overall Width 101"
Overall Ramp extension from dock 27-3/4"
Lip Length 15"
Bumper Projection from Dock 16-3/4"
Bumper Material EPDM
Construction Material Steel
Steel Deck Thickness 3/8"
Weight 559 lbs.

With an Edge Of Dock Leveler 20EP78 Hydraulic you’ll gain the benefits of a pit leveler without the extensive labor and upfront costs associated with installation and upkeep. Simply mounted directly to the face of your dock, an edge of dock leveler (EOD) provides dependable access to trailers ±5” above and below the loading dock. The standard manual model actuates via a self storing handle that relies on a high torsion spring and Latch assembly, allowing the lip to raise up and glide onto the bed of the trailer with less than 45lbs of force. When done loading you can either let the leveler fall back to the resting position as the truck leaves or cycle it back with the handle.

Features
  • Capacities from 20,000 to 30,000 lbs.
  • Alternate widths of 66" and 72"
  • Self storing
  • Refrigerated lip optional
  • Bumpers and bumper blocks included.
  • Operates ±5" above and below dock level
  • 16.75” Bumper face projection
  • Simple to Install
  • Fast, Simple Operation.

Service Range

Bluff's edge of dock leveler is designed to have a working range of 5" above and 5" below dock level when used with gas forklifts or 3" above and below dock level for all other equipment types.

For loading docks to low for this working range we offer low dock ramps designed to be mounted to the floor of your dock opening. This allows the leveler to be mounted at a height suitable to your needs.

Installation Notes:

Installation of an edge of dock leveler requires an approach plate or embedded C channel.

Optional Installation Materials:

EPAP3:Fastener kit for installation of the leveler only - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers
EPAP2: Fastener kit for installation of the leveler and approach plate - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers; contains 5 (ea) 1/2" x 3" flat-head socket screws and 5 (ea) 1/2" double expansion shields
EPAP12C - 12" beveled approach plate; 120" wide (custom widths available), complete with 5 13/16" countersunk holes for mounting to top of dock
EPAP24C - 24" beveled approach plate; 120" wide (custom widths available), complete with& 5 13/16" countersunk holes for mounting to top of dock
