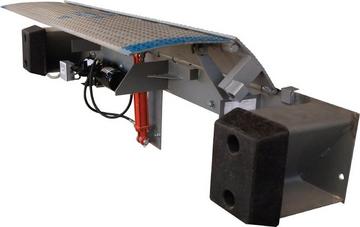

Hydraulic Edge of Dock Leveler 20EP72-H
Reg. Price:
$4,704.00
Sale Price:
$4,256.00
Save:
$448.00
back add to cart
Installation Kit
No Thanks
Fastener Kit with 12" Approach Plate (EPAP12C & EPAP3)
Fastener Kit with 24" Approach Plate (EPAP24C & EPAP3)
Fastener Kit for Leveler Only (EPAP2)
*
Quantity
add to cart

20,000 lb capacity
15" Lip Length
72" Usable Width
95" Overall Width
Hydraulic Movement

Details:

HomeDock BoardsDock LevelersHydraulic Dock levelers

20EP72-H - Specifications
Height up Gas Forklifts only(19% max grade) 5"
Height up All Equipment (14% max grade) 3"
Capacity 20,000 lbs.
Usable Width 72"
Unit Overall Width 95"
Overall Ramp extension from dock 27-3/4"
Lip Length 15"
Bumper Projection from Dock 16-3/4"
Bumper Material EPDM
Construction Material Steel
Steel Deck Thickness 3/8"
Weight 531 lbs.

With an Edge Of Dock Leveler 20EP72 Hydraulic you’ll gain the benefits of a pit leveler without the extensive labor and upfront costs associated with installation and upkeep. Simply mounted directly to the face of your dock, an edge of dock leveler (EOD) provides dependable access to trailers ±5” above and below the loading dock. The hydraulic model actuates via a control panel inside the dock. Simply press the reverse button till the ramp is fully raised then press the forward button until the lip rests on the trailer bed. When you're finished, depress the reverse button until the front lip clears the truck bed and raises into a vertical position. The hydraulic fluid will return to the tank, and The deck section will slowly lower to its resting position parallel to the dock face.

Features
  • Capacities from 20,000 to 30,000 lbs.
  • Alternate widths of 66" and 78"
  • Hydraulic Movement
  • Refrigerated lip optional
  • Bumpers and bumper blocks included.
  • Operates ±5" above and below dock level
  • 16.75” Bumper face projection
  • Simple to Install
  • Fast, Simple Operation.

Service Range

Bluff's edge of dock leveler is designed to have a working range of 5" above and 5" below dock level when used with gas forklifts or 3" above and below dock level for all other equipment types.

For loading docks to low for this working range we offer low dock ramps designed to be mounted to the floor of your dock opening. This allows the leveler to be mounted at a height suitable to your needs.

Installation Notes:

Installation of an edge of dock leveler requires an approach plate or embedded C channel.

Optional Installation Materials:

EPAP3:Fastener kit for installation of the leveler only - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers
EPAP2: Fastener kit for installation of the leveler and approach plate - consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers; contains 5 (ea) 1/2" x 3" flat-head socket screws and 5 (ea) 1/2" double expansion shields
EPAP12C - 12" beveled approach plate; 120" wide (custom widths available), complete with 5 13/16" countersunk holes for mounting to top of dock
EPAP24C - 24" beveled approach plate; 120" wide (custom widths available), complete with& 5 13/16" countersunk holes for mounting to top of dock

Literature



Give us a call to discuss your needs
1800-741-1258
.
